Stream buffers decide the fate of urban projects. A protected corridor along a creek can remove a wide band of land from development, and on a tight city parcel that band may swallow the best part of the site. Design teams need the buffer’s true location early, because finding the true watershed buffer after the site plan is drawn means redrawing the site plan. The work starts with a question that sounds simple and rarely is. Where, exactly, is the feature the buffer measures from?

Identifying the Feature From Which the Buffer Is Measured

A buffer is an offset, and an offset needs an origin. The rules may measure from the top of a stream bank, the centerline of a channel, the edge of a waterbody or a defined regulatory feature, and each starting point produces a different line on the ground. Picking the wrong origin makes every measurement after it wrong by the same amount.

Too many projects start from an approximate line on a county viewer instead. Those mapped streams were digitized from aerial photos and small-scale sources, and they can sit twenty or forty feet from the real channel. A building placed to clear a buffer drawn from that line may sit squarely inside the buffer drawn from the actual bank. Locating the physical feature in the field, precisely and under the correct definition, is the only reliable origin.

Distinguishing Field Evidence From Online Environmental Layers

Online mapping earns its place at the start of the work. The screening layers reveal that a stream exists, roughly where it runs and which rules probably apply, and that knowledge shapes the site visit. The trouble begins when screening data gets treated as design data. The gap between the two shows up in predictable ways:

• Digitized stream lines that drift well away from the channel they represent
• Small or intermittent streams missing from the layers entirely
• Channels that moved after the source imagery was captured
• Mapped features that turn out to be ditches, swales or nothing at all on the ground

Design decisions need survey-grade positions tied to the project’s control network. The online layer says look here. The field survey says build here, and the difference between those two statements is the difference between a permit and a violation.

Coordinating Survey Observations With Environmental Delineation

Locating a feature and classifying it are two different jobs. The surveyor measures where the bank, the channel and the water sit with precision. Deciding whether that channel qualifies as a regulated stream, and where regulation begins along it, often belongs to an environmental professional or to the reviewing authority itself.

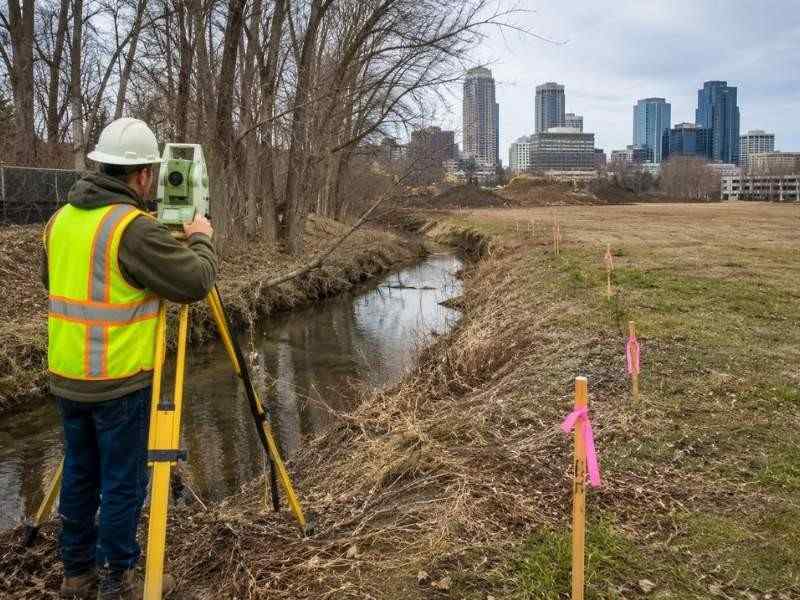

Good projects keep those roles connected. The environmental scientist walks the channel and flags the regulatory limits under the applicable definitions. The surveyor then locates each flag with survey accuracy and ties the delineation into the project coordinate system. The reviewing agency confirms or adjusts the determination, and the confirmed line becomes the origin everything else measures from. Skipping the coordination invites the worst outcome, a precisely surveyed line in the wrong place or a correctly classified feature nobody located properly.

Calculating Offset Lines Across Irregular Ground

Once the origin is fixed, the buffer becomes geometry, and the geometry gets interesting fast. Streams bend, split and wander, and an offset from a curving line behaves differently than an offset from a straight one. Outside bends throw the buffer wide, inside bends pinch it and tributary junctions create overlapping arcs that have to merge into one continuous limit.

The surveyor computes the offset from the located feature, resolves the overlaps and carries the line across the parcel’s real conditions. Crossings need care, since a road or utility corridor through the buffer may follow separate rules. Parcel edges need care too, because the buffer rarely stops at a property line even when the survey does. The finished limit is a defensible line, reproducible from the record and drawn from the correct origin at the correct distance.

Integrating the Verified Limit Into the Design Base

A verified buffer earns its value inside the design file. Placed on the same coordinate base as the boundary, the topography and the utilities, the line starts answering questions immediately. Building footprints shift to clear it, grading limits pull back from it and access routes thread past it while options still cost nothing.

Permitting runs smoother from the same foundation. A site plan showing a field-verified, professionally delineated buffer gives reviewers something they can trust, and it strips a whole category of doubt out of the approval conversation. Projects that guess at the line spend the review cycle defending the guess. Projects that verify it spend the cycle talking about design, and the difference shows up directly in the schedule.

Frequently Asked Questions

Can a watershed buffer be located from a county GIS map alone?

Not for design. GIS layers work well for early screening and rough feasibility, and their stream lines can sit far from the true channel. Precise planning calls for field location of the actual feature, confirmation of the applicable rule and survey-grade mapping of the resulting limit.

Who determines where a regulated stream begins?

The reviewing authority or a qualified environmental professional typically makes that regulatory call under the governing definitions. The surveyor’s role is to locate the identified feature and the flagged limits accurately and to place them correctly within the project’s coordinate system.

Is a buffer line the same as a property boundary?

No. A buffer is a regulatory limit that controls land use, and it crosses ownership without changing it. Land inside the buffer still belongs to the owner. The buffer restricts what can happen there, which is a different thing entirely.
